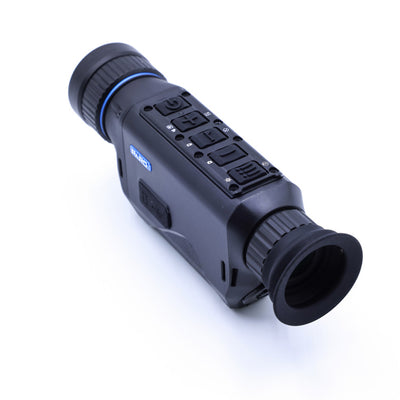

Bobcat 640 35mm Thermal Monocular
Bobcat 640 35mm Thermal Monocular
1920x1080 OLED display
enhances brightness, resolution, and contrast, providing true-to-life clarity even in complete darkness
NETD ≤ 18mK
detect the smallest temperature differences and produce crisp, high-contrast thermal imagery
640x512 sensor
delivering exceptional definition, refined contrast, and superior long-range recognition
Specifications
| General | |
|---|---|
| Model | Bobcat 640 |
| Classification | Thermal Imaging monocular |
| Sensor | |
| Sensor Type | Uncooled VOx (vanadium oxide) |
| Sensor Resolution(pixel) | 640*512 |
| Pixel size(μm) | 12*12 |
| Sensitivity(lux) | ≤18mK（0.018℃) |
| Frame rate(Hz) | 50 |
| Detection distance(m) | 1800 |
| Optics | |
| Objective lens(mm) | 35 |
| Optical Magnification(x) | 2.6 |
| Digital zoom(x) | 2/4/6/8 |
| Horizontal Field of view(°) | 12.5 |
| Vertical Field of view(°) | 10 |
| Diagonal Field of view(°) | 16 |
| Horizonal Field of view (m @100m) | 21.9 |
| Vertical Field of view (m @100m) | 17.6 |
| Focus range | 3m ~ ∞ |
| Diopter adjustment(D) | ±5D |
| Display | |
| Display Type | OLED |
| Display Resolution(pixel) | 1920*1080 |
| Image mode | WT-HOT/BK-HOT/H-light/RD-HOT/IN-HOT/SKY |
| Video & Photo | |
| Photo Resolution(pixel) | 1440*1080 |
| Photo Format | .JPG |
| Video Resolution(pixel) | 1440*1080 |
| Video Format | .mp4 |
| Main function | |
| LRF/m | 1000 |
| Compass | Yes |
| PIP | Yes |
| Auto recording | Yes |
| Loop recording | Yes |
| Time stamp | Yes |
| Record audio | Yes |
| Storage(GB) | Micro SD card (Max. 128GB) |
| Connections | |
| USB Type-C | Yes |
| WiFi | Yes |
| Supported Apps | PardVision2 |
| Power Supply | |
| Battery type | Li-ion Battery 18650*1 |
| Output voltage(V) | 3.7 |
| Operating time(h) | 6 |
| External power supply | Type-C |
| Material | |
| Housing | AL6061 & Composite |
| Objective lens | All-glass multi-coated lens |
| Measurement | |
| Product dimension(L x W x H, mm) | 170*70*43 |
| N.W/pcs(with battery, g) | 405 |
