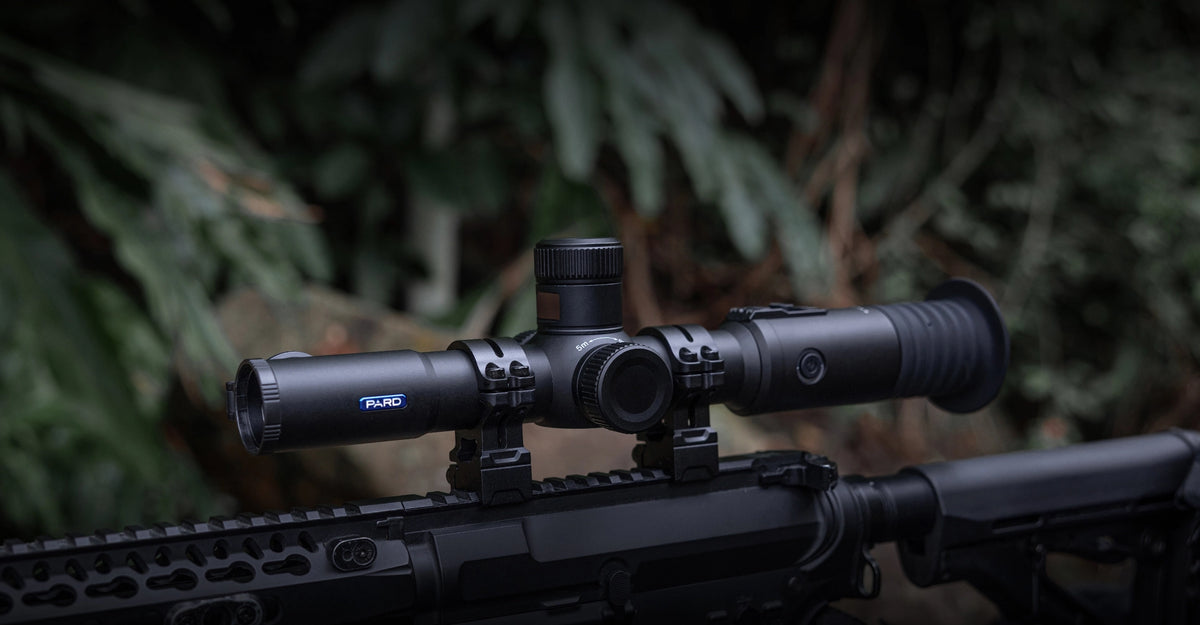

Pantera Mini 384 25mm Thermal Rifle Scope LRF
Pantera Mini 384 25mm Thermal Rifle Scope LRF
High-Sensitivity Thermal Imaging
The 384 × 288 thermal sensor with NETD ≤15mK detects subtle temperature differences, delivering detailed thermal images to help distinguish subjects from their surroundings.
2.4× Optical Magnification. Wider Field of View
With 2.4× optical magnification and a 10.5° horizontal field of view, the 25mm lens captures a broader scene, making it ideal for closer-range observation and scanning wider areas.
Integrated LRF. Smarter Ballistic Calculation
The built-in turret laser rangefinder and ballistic calculator combine distance measurement with calculated shooting adjustments in one integrated system.
Lightweight Design. Intuitive Control
Weighing approximately 500g including the battery, the compact design supports mobility, while side-focus adjustment enables convenient image focusing without changing your shooting posture
Specifications
| General | |
|---|---|
| Model | Pantera Mini 384 25mm |
| Classification | Thermal Imaging Scope |
| Sensor | |
| Type | Uncooled VOx(vanadium oxide) |
| Resolution(pixel) | 384×288 |
| Pixel Size(µm) | 12 |
| NETD | ≤15mK |
| Frame Rate(Hz) | 50 |
| Detection Range(m) | 1200 |
| Optics | |
| Objective Lens(mm) | 25 |
| Optical Magnification(x) | 2.4 |
| Digital Zoom(x) | 2/4/6/8 |
| Field of View (Horizontal) | 10.5° |
| Field of View (Vertical) | 7.9° |
| Field of View (Diagonal) | 13.1° |
| Field of View (m @100m Horizontal) | 18.4 |
| Field of View (m @100m Vertical) | 13.8 |
| Focus Range | 5m-∞ |
| Eye Relief(mm) | 50 |
| Diopter Adjustment(D) | ± 5 |
| Display | |
| Type | OLED |
| Resolution(pixel) | 1920×1080 |
| Reticle Style | 6 |
| Reticle Color | Red/White/Yellow/Green |
| Scene Mode | City/Rain/Forest |
| Image Mode | WT-HOT/BK-HOT/RD-HOT/IN-HOT/SKY |
| Photo / Video | |
| Photo Resolution(pixel) | 1920×1080 |
| Photo Format | .JPG |
| Video Resolution(pixel) | 1920×1080 |
| Video Format | .mp4 |
| Storage(GB) | Micro SD card (Max. 128GB) |
| Main Function | |
| LRF | Yes |
| Ballistic Calculator | Yes |
| PIP | Yes |
| Hot Track | Yes |
| Gyroscope | Yes |
| Recoil-activated Recording | Yes |
| Loop Recording | Yes |
| E-compass | Yes |
| Firmware Upgrade | Yes |
| Shutter | Mechanical Shutter |
| Connections | |
| USB Type-C | Yes |
| HDMI Output | No |
| WiFi | Yes |
| Supported Apps | PardVision2 |
| Power Supply | |
| Battery Type | Lithium Ion 18650*1 |
| Output Voltage(V) | 3.7 |
| Operating Time(h) | ≤5 |
| External Power Supply | USB Type-C |
| Environmental Characteristic | |
| Degree of Protection | IP67 |
| Operating Temp(°C/°F) | -30 ~ +55 / -22 ~ +131 |
| Recoil Resistance(J) | 6000 |
| Material | |
| Housing | Aluminum Alloy |
| Objective Lens | All-glass multi-coated lens |
| Measurement | |
| Product Dimension(L × W × H, mm) | 285×82×72 |
| Weight(with battery, g) | 500 |
| Optics | |
| Field of view (HxV) / Horizontal | 10.5° |
| Field of view (HxV) / Vertical | 7.9° |
| Field of view (HxV) / Diagonal | 13.1° |
| Measurement | |
| Weight/with battery(g) | 500 |
